Disk check valve
Flush Bottom Ball Valve Flange End 150 #

Features Material Specifications
Design STD DIN EN 558-2 1. Body CF8M, CF8, CF3M, CF3, WCB Etc.
Testing Standard DIN 3230 2. Disc CF8M, CF8, CF3M, CF3, WCB Etc.
Rating PN25/PN40 3. Star (Yoke) CF8M, CF8, CF3M, CF3, WCB Etc.
Size DN15 - DN150 4. Spring SS 316., SS 304, SS 316L, 304L Etc.

Salient Features
1. Investment Castings Body, Star, Disc
2. Metal to Metal Zero Leak Proof and also Available in Rubber / PTEF Seating on bluk requirement

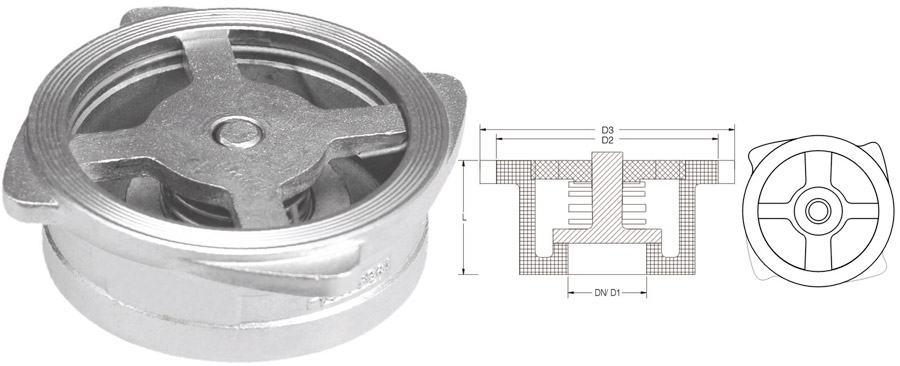

Details of Dimension
Size DN 15 DN 20 DN 25 DN 40 DN 50 DN 65 DN 80 DN 100 DN 150
D1 15 mm 19 mm 25 mm 40 mm 50 mm 65 mm 80 mm 100 mm 150 mm
L 17 mm 20 mm 23 mm 32 mm 40 mm 46 mm 50 mm 60 mm 105 mm
D2 42 mm 52 mm 63 mm 85 mm 95 mm 115 mm 133 mm 154 mm 222 mm
D3 56 mm 67 mm 80 mm 101 mm 104 mm 136 mm 154 mm 184 mm 252 mm
